Budget Sensors

SHR150

産品品牌：S030199

産品型号：Budget Sensors

産品資料： 點擊下載

Product Description

Single carbon spike on silicon apex!

Based on BudgetSensors' well established Tap150-G probe.

The SHR-150 probe has a single hydrophobic diamond-like carbon extratip at the apex of Gold coated silicon etched probe. There are no additional smaller extratips near the main one, just one well defined extratip. The SHR-150 can be used even for imaging of rough surfaces - there will not be repeated features in the scan due to tip artefacts from extratips with different length and angle.

Consistent high quality at a lower price!

Coating Description

70nm Gold on both sides of the cantilever. Carbon spike not coated!

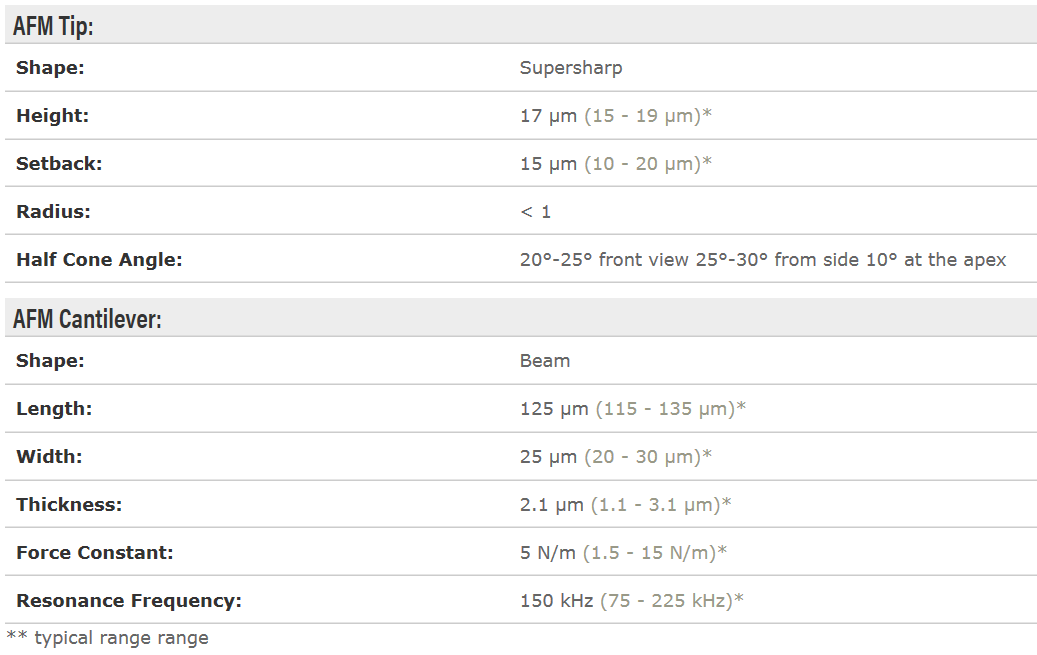

Full Technical Data

SHR150 High resolution.png
